Mouse Brain Gross Anatomy Atlas

[Part I Fixed Brain][Part II Fresh Brain]

1-4  5-8  9-12  13-16 17-20 21-24 25-28 29-32  33-36

Step21



063099.18
19 g

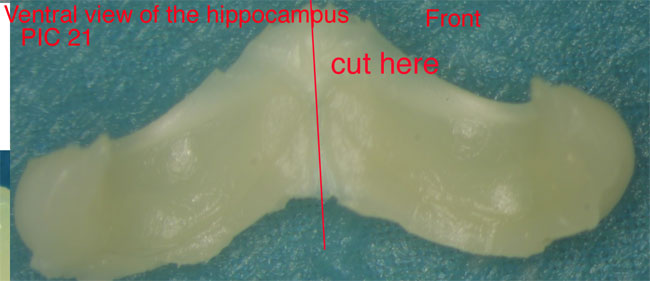

The ventral view of both hippocampus. This is the normal position of the hippocampus inside of the brain.
Step22



063099.18
19 g

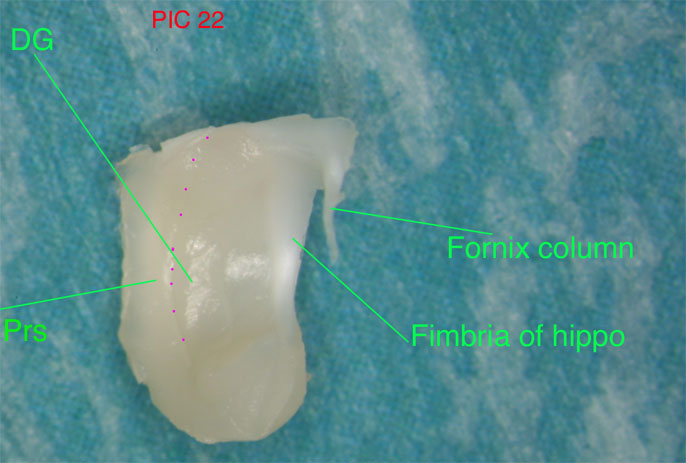

In these two pictures you can see the dotted line between the PrS and the Dentate gyrus (DG). In fact the PrS can be considered part of the hippocampus, but from the gross anatomy stand point, the margin of the PrS is not so clear, so we prefer to cut it off . This is the medial view of the right hippocampus
Step23



063099.18
19g

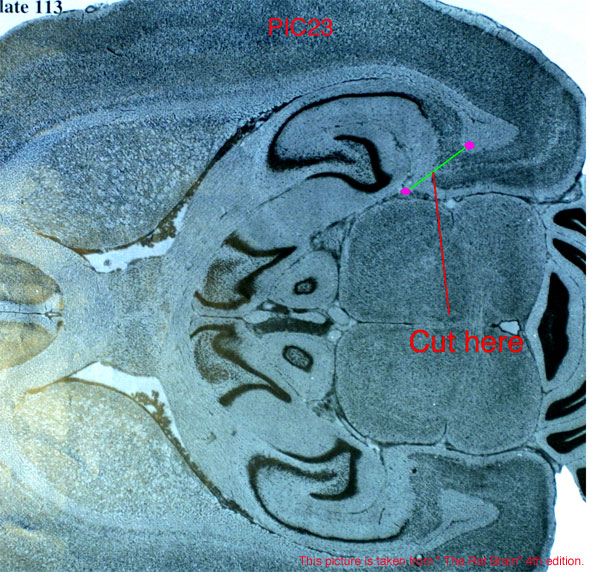

In horizontal section images
Step24



063099.18
19g

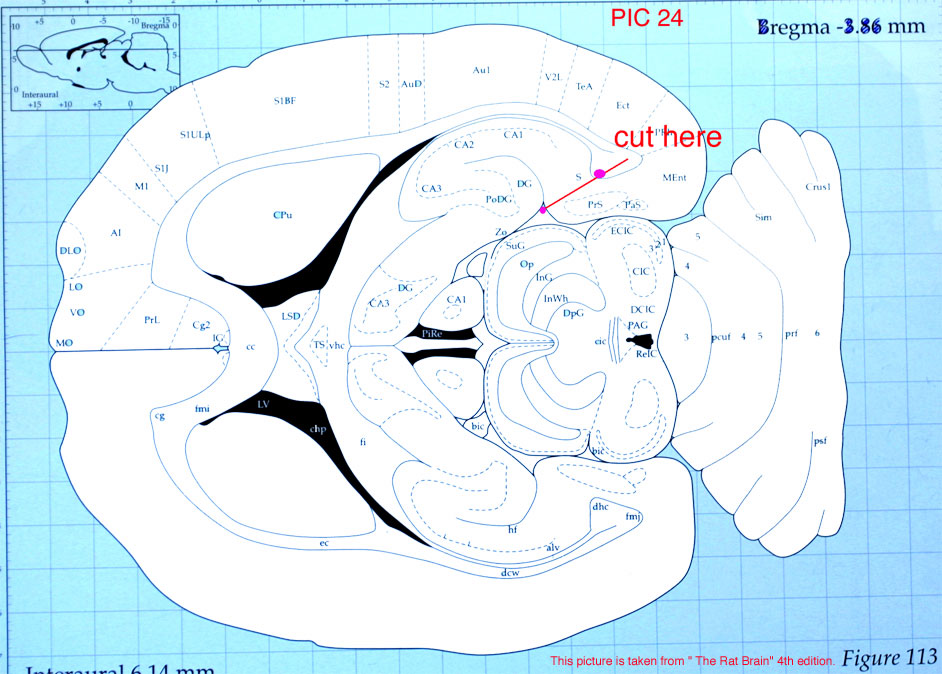

In horizontal section images the cutting line is clearly visible
